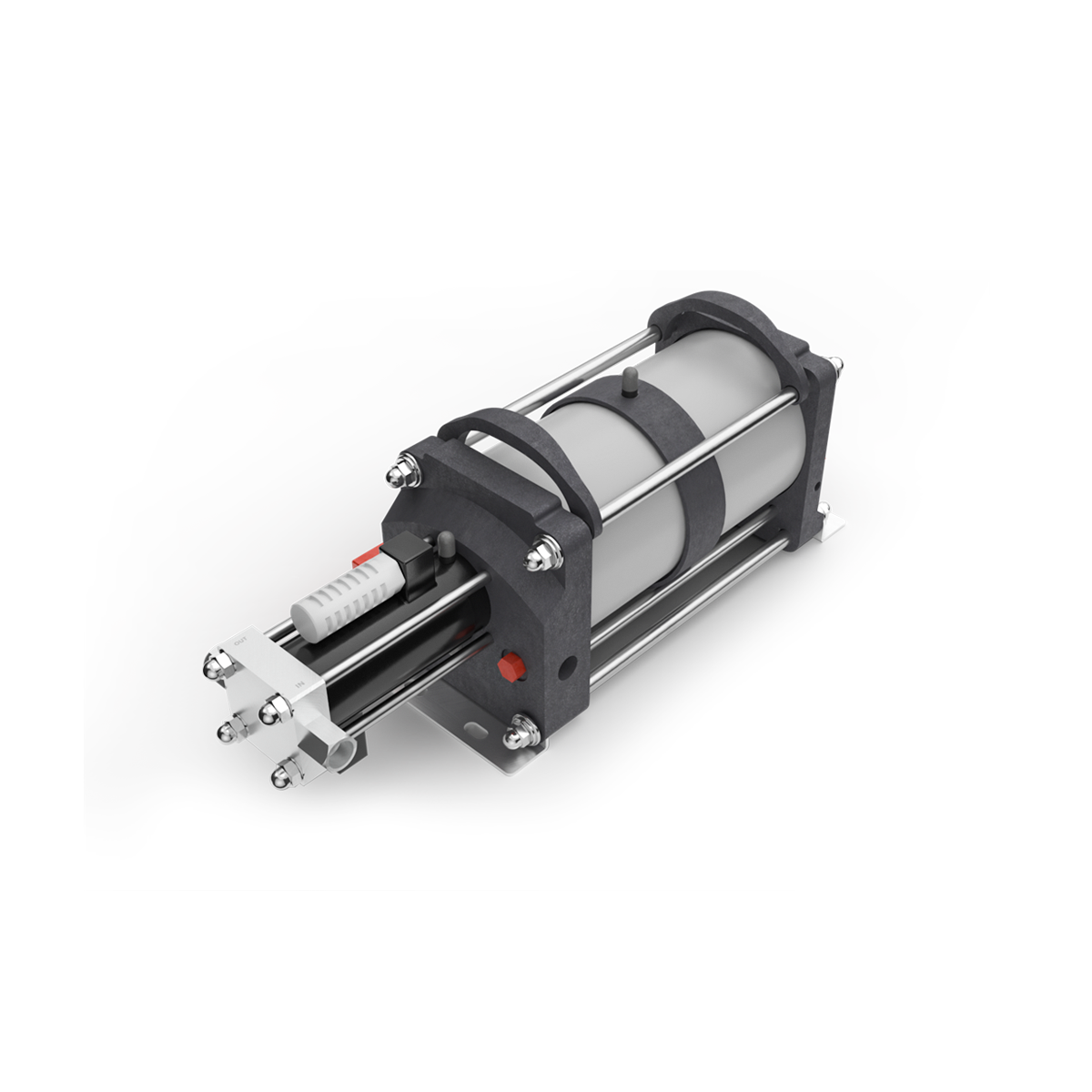

Composed of
one high pressure part
and two driving part

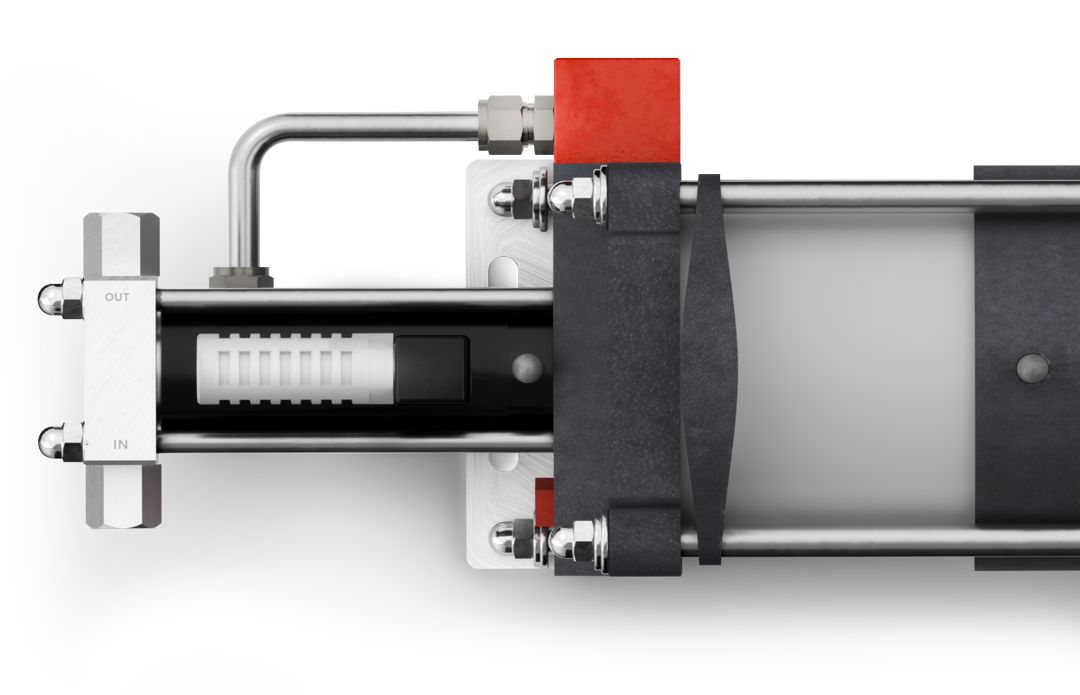

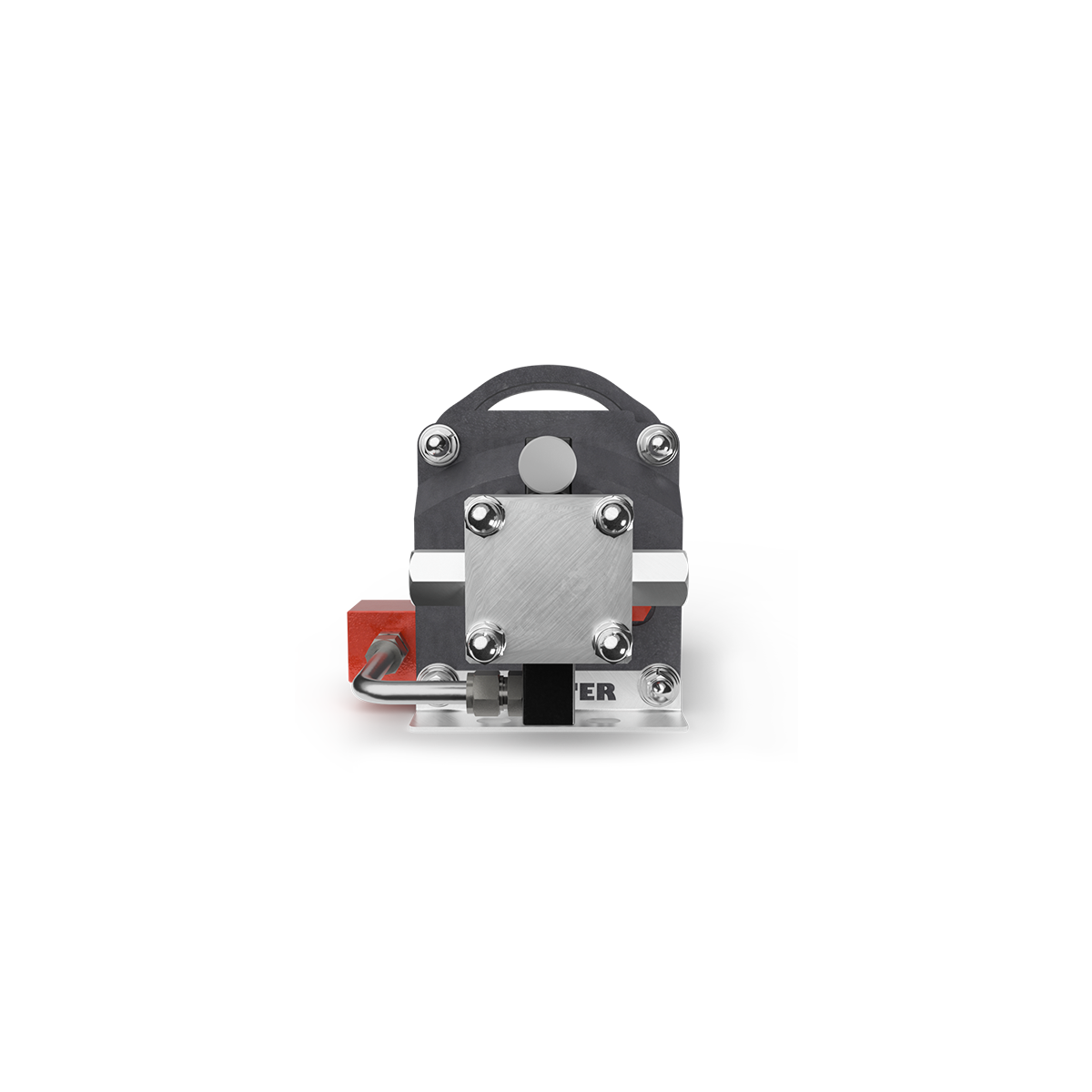

Possible to change the direction of IN, OUT check
Overview
GAS BOOSTER GB-SD
SPECIFICATION
| Model |
GB-SD-60 |
GB-SD-100 |
GB-SD-150 |
| Ratio |
1 : 60 |
1 : 100 |
1 : 150 |
| Air Drive Pressure (kg/㎠) |
5 ~ 10 |
5 ~ 10 |
5 ~ 10 |
| Max. Pressure (kg/㎠) |
420 |
700 |
1,050 |
| Min.Suction Pressure (kg/㎠) |
28 |
31 |
35 |
| Gas port (Inlet | outlet) |
UNF 9/16" 18 | UNF 9/16" 18 |
UNF 9/16" 18 | UNF 9/16" 18 |
UNF 9/16" 18 | UNF 9/16" 18 |
| Air line |
PT 1/2" |
PT 1/2" |
PT 1/2" |
| Weight (kg) |
20 |
20 |
21 |
|
GB-SD-60
|
1 : 60
|
5 ~ 10
|
420
|
28
|
9/16" 18 UNF | 9/16" 18 UNF
|
PT 1/2"
|
20
|
|
GB-SD-100
|
1 : 100
|
5 ~ 10
|
700
|
31
|
9/16" 18 UNF | 9/16" 18 UNF
|
PT 1/2"
|
20
|
|
GB-SD-150
|
1 : 150
|
5 ~ 10
|
1,050
|
35
|
UNF 9/16" 18 | UNF 9/16" 18
|
PT 1/2"
|
21
|
※ M.P(kg/㎠) = Ratio * Air Drive Pressure(kg/㎠)
※ M.P is calculated with 7 bar(standardized air pressure).
